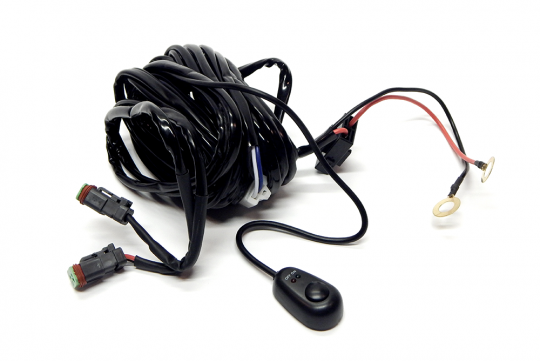

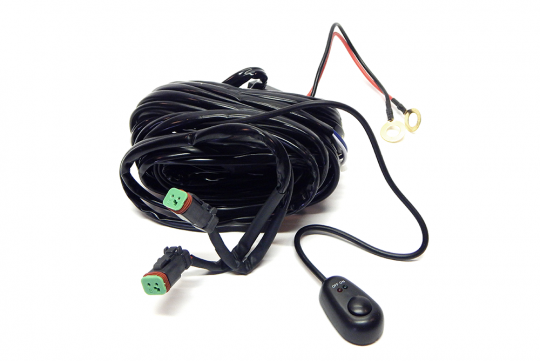

LED Light Bar Wiring Harness with Switch, DT Connector Dual Plug
Southern Truck Lifts
LED Light Bar Wiring Harness with Switch, DT Connector Dual Plug
As low as 0% APR. Prequalify now
As low as $62.29/mo. Learn more
LED Light Bar Wiring Harness with Switch, DT Connector Dual Plug
When you buy Southern Truck Lifts from Big League Accessories, you are buying directly from an Authorized Retailer
Our Guarantee
Best Price Guaranteed
Truck Experts a Call Away
Fastest Shipping
30 Day Return Guarantee
Lifetime Install Support
Power Two Lights the Right Way, With Protection Wired In From the Start
Skip the parts-store splice job. This dual DT harness feeds two Southern Truck lights from a single relayed, fused circuit and puts an illuminated push-button switch inside the cab where your hand already goes. Plug the connectors, mount the switch, land the terminals on the battery, and you are done guessing at wire gauge.
A harness is the baton pass in a relay team: nothing about it shows up in the highlight reel, and everything falls apart when it is done badly. Flat-wound 14-gauge wire carries the current, a 40 amp relay keeps that load off your switch, a 30 amp in-line fuse stands guard, and a protective rubber layer takes it past IP68 waterproof standards.
Key Features
- ✓ 14-gauge flat-wound wire built for strength and durability
- ✓ 40 amp relay keeps high current away from the switch contacts
- ✓ 30 amp in-line fuse protects the circuit and the vehicle
- ✓ 360W load capacity on a 12 volt system, enough for a serious pair
- ✓ Dual DT connectors plug straight into Southern Truck lights
- ✓ Illuminated push-button on/off switch you can find in the dark
- ✓ Protective rubber layer exceeds IP68 waterproof standards
What's Included
- Dual DT connector wiring harness
- 40 amp relay
- 30 amp in-line fuse
- Illuminated push-button on/off switch
Measure Before You Route
Lay the run out before you zip-tie anything. Overall length is 132 in., with 116 in. from the light connector to the relay, 114 in. from the relay to the switch, 22 in. from the relay to the power terminals, and 231 in. of light-to-light reach for wide bumper or roof spacing.
Manufacturer Notes
Rated IP68 waterproof. Fits all Southern Truck lights except combination kits.
Why It Works
You get correct gauge, correct protection and correct connectors in one bag, which means a clean install the first time and a circuit that survives weather, wash bays and winter road spray. Two lights, one switch, no improvising.
Specifications
- Wire Gauge: 14 Gauge flat-wound
- Relay: 40 Amp
- Fuse: 30 Amp in-line
- Voltage: 12 Volts
- Load Capacity: 360 Watts
- Connector Type: Dual DT
- Switch: Illuminated push-button on/off switch
- Size: Overall 132 in.; light connector to relay 116 in.; relay to switch 114 in.; relay to power terminals 22 in.; light to light 231 in.
- Material: Flat-wound copper wire with protective rubber layer
- Waterproof Rating: IP68
- Sold As: Single wiring harness kit
- Kit Components: Wiring harness, 40 amp relay, 30 amp in-line fuse, illuminated push-button on/off switch
The lights get the attention, but the harness decides whether they still work next season. This is the unglamorous part worth buying right.
| Locking Fuel Cap Included | No |
|---|---|
| Vendor Processing Time | 2 |
| Shipping Cost | 14.95 |
| Shipping Type | Parcel |
| Material | Flat-wound copper wire with protective rubber layer |
