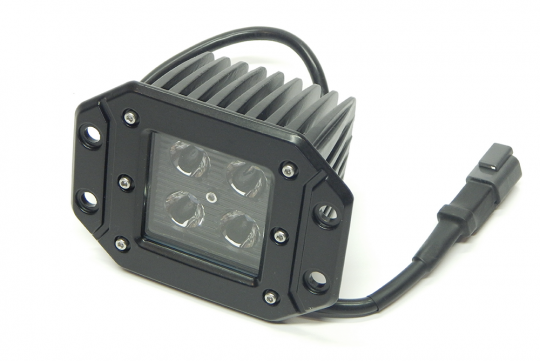

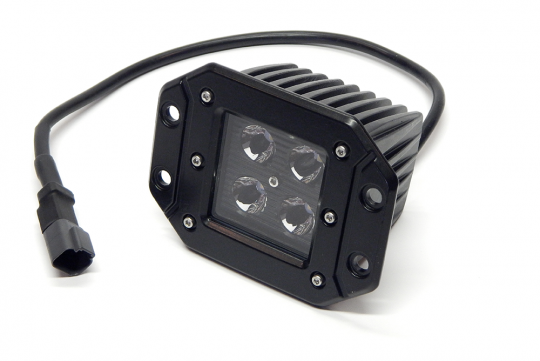

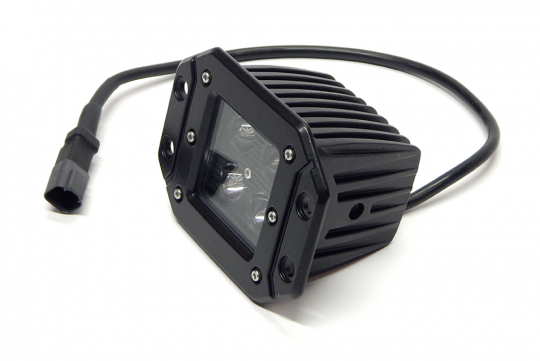

A Wide Wash of Work Light That Sits Flush Instead of Sticking Out

This one is for the builder cutting a clean opening in a bumper, a service body panel or a trailer skirt and wanting the light to disappear into it. The 90-degree flood beam blankets everything close in, so backing to a hitch, loading a machine or working a job site at 6 a.m. stops being a guessing game. Cut, bolt, wire, done.

Four 4-watt high-intensity LED chips put out 1,440 lumens on 16 watts and a 1.3 amp draw, spread wide rather than aimed far. Think of a keeper sweeping the whole penalty area rather than a striker attacking one lane: coverage is the job. The flush-mount face plate keeps the light inside the bodywork where branches, straps and loading ramps cannot catch it.

Key Features

• ✓ 90-degree flood beam covers the whole near-field work area
• ✓ 1,440 lumens on 16 watts with a light 1.3 amp draw
• ✓ Flush-mount design tucks the housing into the panel, not onto it
• ✓ Four 4-watt high-intensity LED chips behind a Black Series panel
• ✓ Die-cast aluminum housing for corrosion resistance and heat control
• ✓ Moisture Breather technology reduces moisture inside the cube
• ✓ IP67 waterproof rating and a 22 in. wiring lead for routing slack

What's Included

• One 3 in. LED cube flood light, Black Series
• DT pigtail connector and lead
• Mounting brackets
• Mounting hardware

Wiring harness and switch sold separately: 79900 or 79904 for a single light, 79903 or 79905 for a pair.

Measure Your Opening First

The face plate measures 4.75 in. long by 3.60 in. high, with mounting holes 4.0 in. apart. Behind the panel you need 3.0 in. of depth for a housing that measures 3.25 in. wide by 3.0 in. high. Bolt diameter is 8mm and the wiring lead runs 22 in.

Manufacturer Notes

Rated IP67 waterproof and covered by a 3-year warranty.

Why It Works

Wide coverage, low current draw and a recessed profile that survives a working life. You gain a lit work zone without adding another object to snag, and the sealed die-cast housing means weather is not part of the maintenance schedule.

Specifications

• Light Type: LED
• Light Wattage: 16 Watt
• Brightness: 1,440 Lumens
• Light Pattern: 90-degree flood beam
• Beam Type: Flood
• Amp Draw: 1.3 Amps
• LED Chips: 4 x 4-watt high intensity LED chips
• Size: 3 inch cube; face plate 4.75 in. L x 3.60 in. H; overall depth 3.0 in.; housing 3.25 in. W x 3.0 in. H; mounting hole-to-hole 4.0 in.
• Material: Die-cast aluminum
• Panel Design: Black
• Series: Black Series
• Waterproof Rating: IP67
• Bolt Diameter: 8 mm
• Mounting: Flush Mount
• Connector Type: DT pigtail, 22 inch wiring lead
• Sold As: Kit, single LED cube
• Kit Components: One LED cube light, DT pigtail, mounting brackets, hardware
• Wiring Harness: Harness/switch sold separately (Part 79900 or 79904 - single) (Part 79903 or 79905 - dual)
• Warranty: 3 Year Warranty

Flood beams earn their keep in the first twenty feet, which is where most real work actually happens. Choose this one when the light needs to be everywhere close by and nowhere in the way.
