Barn Doors and Brute Capacity — The Aluminum Underbody Box That Works Like a Pro.

Contractors who run dual barn-door underbody boxes know the difference between light-duty and heavy-duty. The Chandler 24"W x 24"H x 60"L Smooth Aluminum Underbody Toolbox with Cam Locker Barn Doors is built for operators who need maximum opening access, serious security, and the weight savings that aluminum delivers on a fully loaded truck.

At 113 lbs, this all-aluminum box keeps gross vehicle weight in check while delivering more cubic feet of accessible, weather-sealed storage than most competitors can match.

The Aluminum Advantage — Maximum Access, Long-Term Value

Constructed from robotically welded 5052 aluminum (.125" thick) — the same alloy used in marine and commercial fabrication — this box is naturally corrosion-resistant and built to handle everything from coastal salt air to oil field dust without rusting.

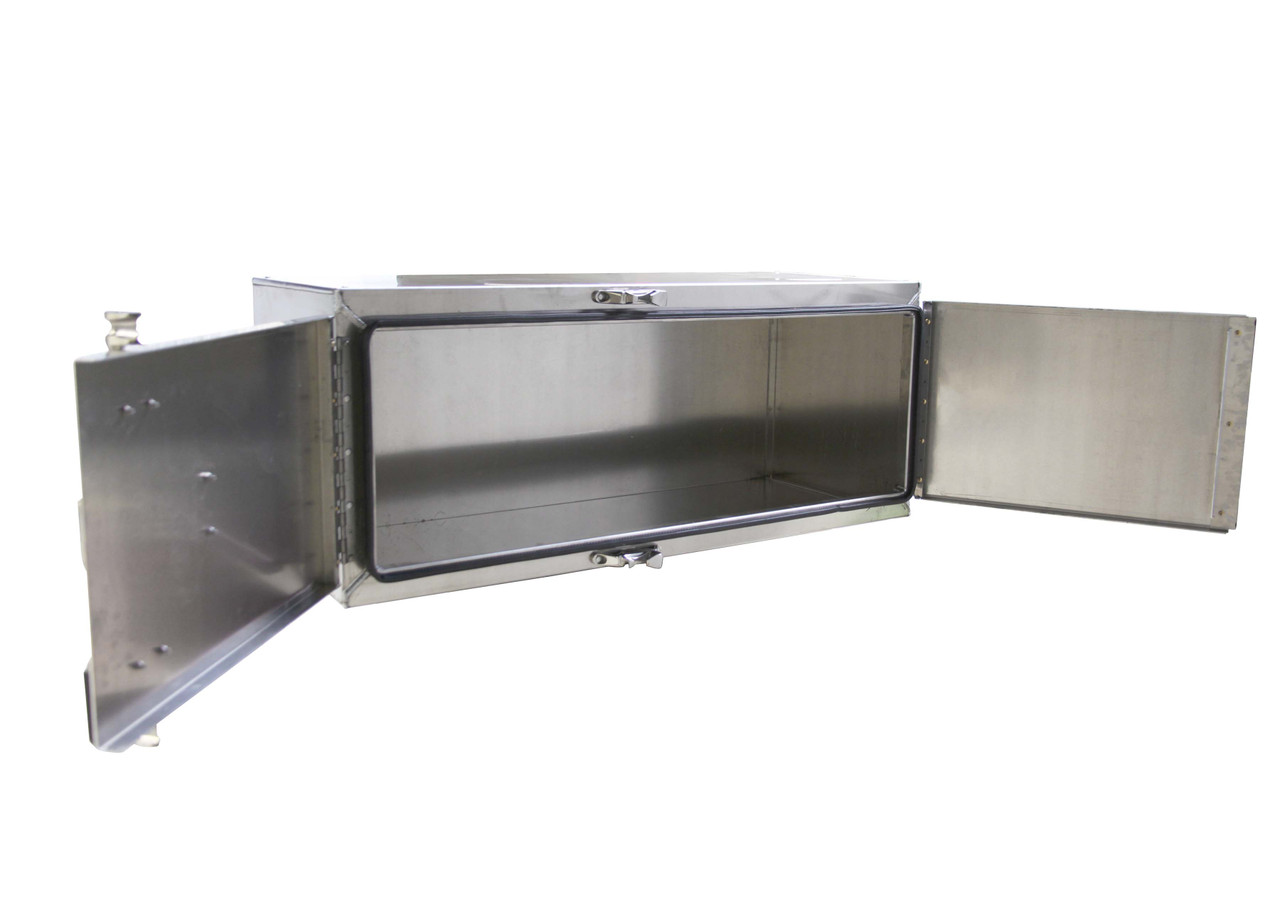

The polished aluminum barn doors open fully from both sides, providing unobstructed access to the full interior — a major advantage over single-door designs when loading or retrieving gear in tight conditions. Full-length stainless steel piano hinges with .25" knuckles are huck-mounted on each door. Each huck-mount delivers 3,000 lbs of pull strength — 18,000 lbs total on the 6-huck cam locker bar latch system, making forced entry virtually impossible.

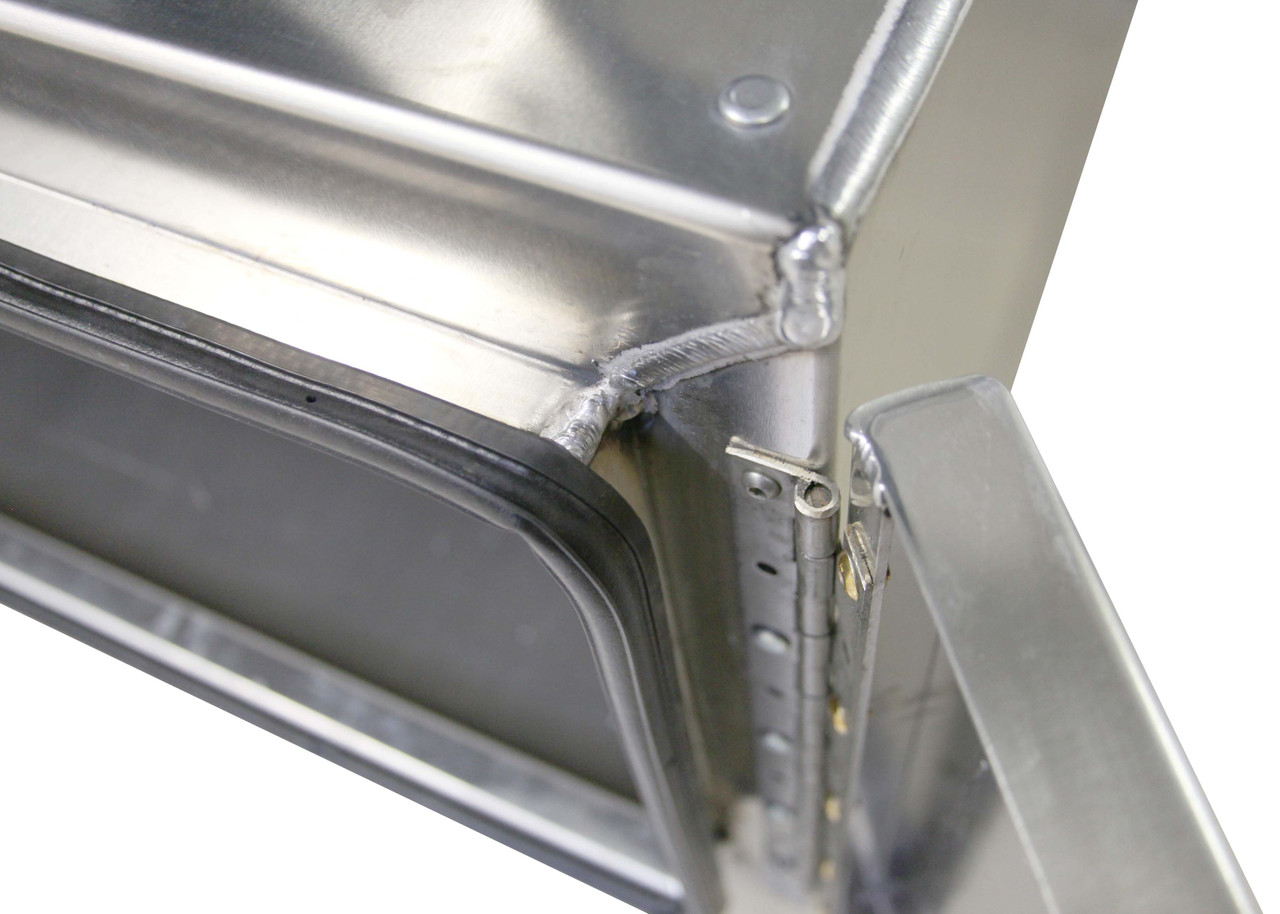

The 360-degree, 1-inch full-perimeter rain gutter channels water away from the door seal opening. An automotive-grade replaceable bulb seal runs the full perimeter for backup weather resistance. The stainless steel cam-over latch pulls both doors tightly against the seal when closed for maximum weather exclusion.

Inside, four 1/8" gussets on the corners add structural rigidity. Fully powder-coated interior protects your tools from raw metal contact. The cam locker latch and piano hinges are huck-mounted — field-replaceable without cutting or re-welding. Made in the USA, backed by Chandler's 10-year limited warranty.

Key Features

✓ 5052 Smooth Aluminum Construction — .125" thick, lightweight, naturally corrosion-resistant

✓ Polished Barn-Style Aluminum Doors — Full dual-door access, unobstructed from both sides

✓ Full-Length Stainless Steel Piano Hinges — .25" knuckle, huck-mounted on each door

✓ Stainless Steel Cam-Over Bar Latch — 18,000 lbs total huck-pull strength, padlock provision

✓ Full-Perimeter Rain Gutter + Replaceable Bulb Seal — 360° weatherproof closure

✓ Field-Replaceable Latch and Hinges — No welding required for repairs

✓ 10-Year Limited Warranty — Made in the USA

Installation & Compatibility

Under-bed or flat surface mounting. Can be welded, bolted (holes must be drilled), or mounted with L-brackets (sold separately). Review fuel tank, brake line, and hydraulic routing before mounting. Dimensions: 60"L x 24"W x 24"H. Weight: 113 lbs.

Manufacturer Notes

Made in the USA — 10-Year Limited Warranty — Chandler Truck Accessories.

The Bottom Line

If you need the biggest-opening, highest-security underbody box in aluminum — one that won't rust, won't flex, and can be repaired in the field — the Chandler Cam Locker Barn Door box is in a class of its own.

"Like a pulling guard who opens a hole and holds it — this box gives you full access right when the job demands it most."

Specifications

Model: 5000-7040

Brand: Chandler Truck Accessories

Dimensions: 60"L x 24"W x 24"H

Weight: 113 lbs

Material: 5052 Smooth Aluminum (.125")

Finish: Polished / Natural Aluminum

Country of Origin: USA

Warranty: Limited 10-Year
